Lightweight and Space-saving by 3 phase
Product features
Applications
Technical Data
| Parameters | Provisional specifications |
|---|---|
| Current detection range | ±600A (*provisional value) |
| Measurement accuracy | ≦±1.0%（F.S） *Ta=25℃ |
| Maximum current | ±1,600A＜1sec |
| Insulation voltage | 3kVac |

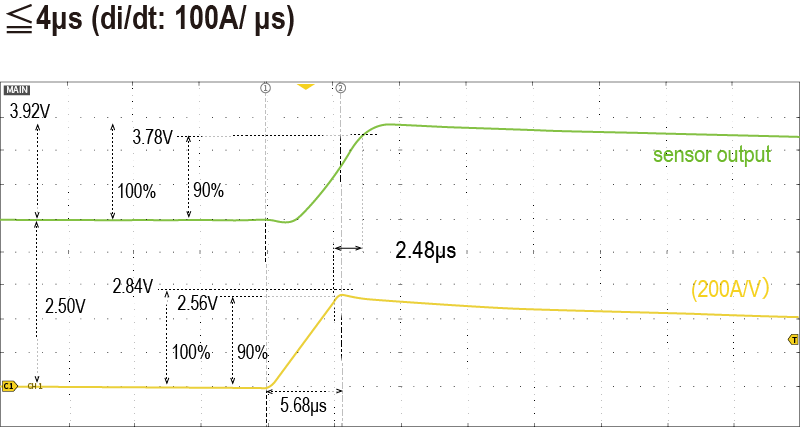

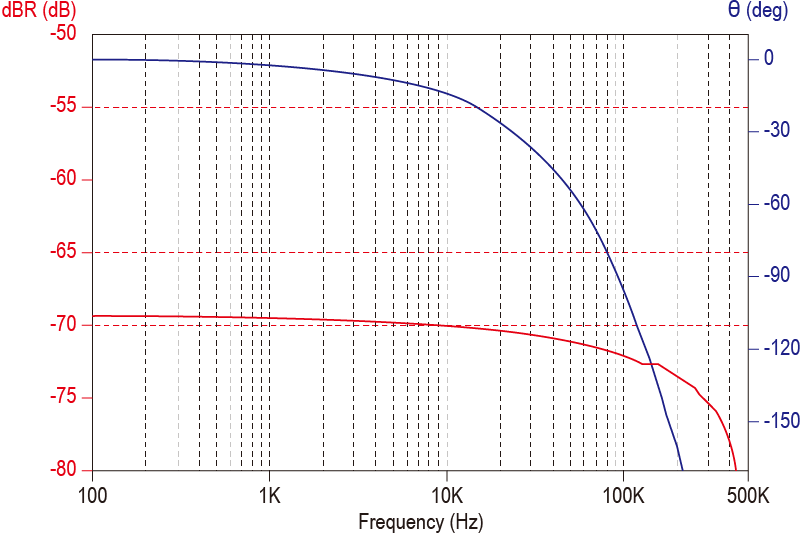

| Response speed | ≦4μs（di/dt 100A/μs） |
| Output value | +2.5V±2V (Ratiometric) |
| Current consumption | ≦63mA |
| Input power supply | +5V±0.25V |
| Operating temperature range | -40℃ ～ +125℃ |
| Quality assurance | AEC-Q100 (IC only) |
* The information contained herein are provisional specifications and are subject to change without notice.
Reference dimensions
Reliability evaluation of the Busbar module
| Parameters | Test conditions |
|---|---|
| Temperature -Humidity Cycling Test | +85°C（12H） -30°C（12H） / humidity 95% / 48 cycles |
| Vibration test | Frequency: 10~200Hz |
| Speed: 15min (round trip, long sweep) | |
| Acceleration: 10~50Hz 2mm Double amplitude control 50~200Hz 10G | |
| Direction: X、Y、Z Three directions | |
| Time: 20 hours in all directions | |
| Thermal shock test | -30°C（0.5H） +85°C（0.5H） / 1,000 cycle |

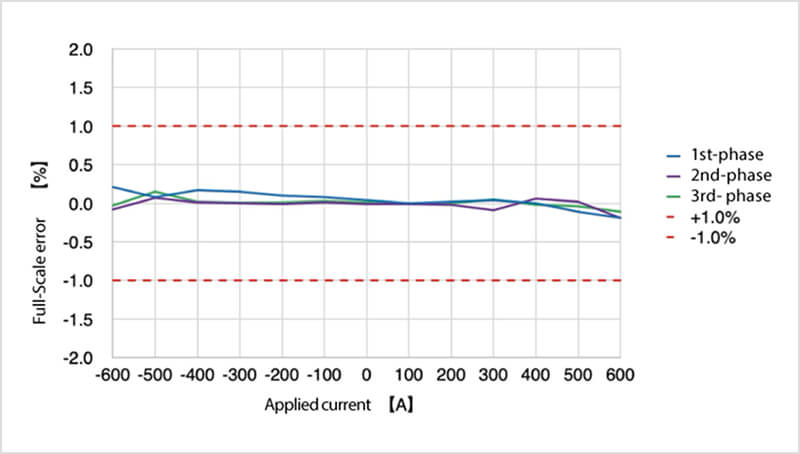

Current detection accuracy of phases (25℃)
