Measurement accuracy: ±1.0% (F.S.) or less
Product features
Applications
Technical data
| Parameters | Provisional Specification |
|---|---|
| Current detection range | ±150～±800A |
| Measurement accuracy | ≦±1.0%（F.S） *Ta=25℃ |
| Maximum current | ±1,600A＜1sec |
| Insulation voltage | 3kVac |
| Response speed | ≦4μs（di/dt 100A/μs） |
| Output value | +2.5V±2V (Ratiometric) |
| Current consumption | ≦21mA |
| Input power supply | +5V±0.25V |
| Operating temperature range | -40℃ ～ +125℃ |
| Connector | Molex connector 5P(Gold plate) 560020-0530 |
| Quality assurance | AEC-Q100 (IC only) |
* The information contained herein are provisional specifications and are subject to change without notice.
Reference idea
Improvement of functional safety through dual sensing as a proposal
Reference dimensions
Reliability Evaluation (Busbar Module)
| Parameters | Provisional Specification |
|---|---|
| High-temperature storage test | +85°C / No Load / 120h |
| Temperature–humidity cycling test | -30°C↔︎85°C / 9h, 95% / 48cycle |
| Low-temperature storage test | -30°C / No Load / 120h |
| Thermal shock test | -30°C↔︎80°C / 30min, 150cycle |
| Vibration test | 5G, 10～2,000Hz / 3axis |
| Impact resistance test | 50G, 11msec, 10times / 3axis |

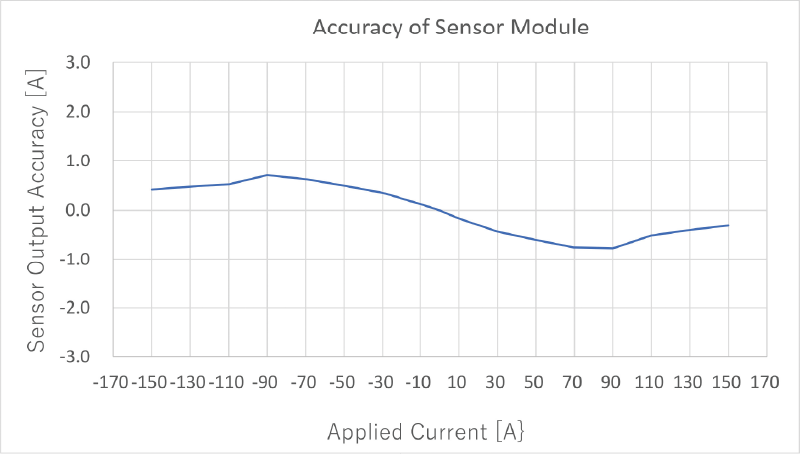

Current detection accuracy
