Dual Current Sensor NDIC+Shunt

Redundancy Design TMR and Shunt resistor

Dual Current Sensor NDIC+Shunt

Product features

  • Redundant design TMR and Shunt resistor

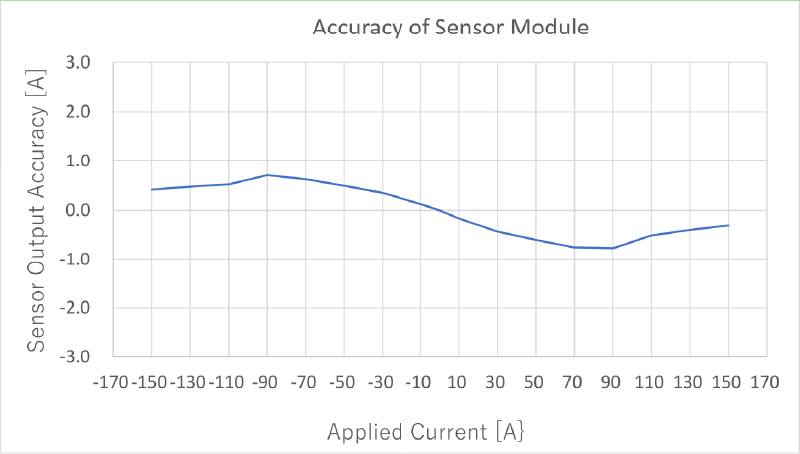

  • Excellent accuracy and linearity
  • Any measurement range is possible by calibration
  • Ratiometric

Product application

  • BMS, PDU, JCB etc.
  • Fast charging infrastructure
  • ESS (energy storage systems)

Technical Data

ParametersSpecification
NDIC SensorShunt Sensor
Input Current Range±800A±800A / 25μΩ
RMS voltage for AC insulation3kVac-
Response time(Delay time to 90 %)≦4μs (di/dt : 100A/μs)-
Frequency bandwidth67kHz/-3dB-
Common-Mode Transient Immunity≦20kV/μs-
Output voltage+2.5V±2V（Offset error ±2mV）±20mV / ±800A
Sensitivity error±0.5%(F.S)
Hysteresis error≦±2mV-
Supply voltage+5V±0.25V-
Current consumption12mA-
Ambient operating temperature-40℃～+125℃
quality assuranceAEC-Q100

Dimensions

図面
