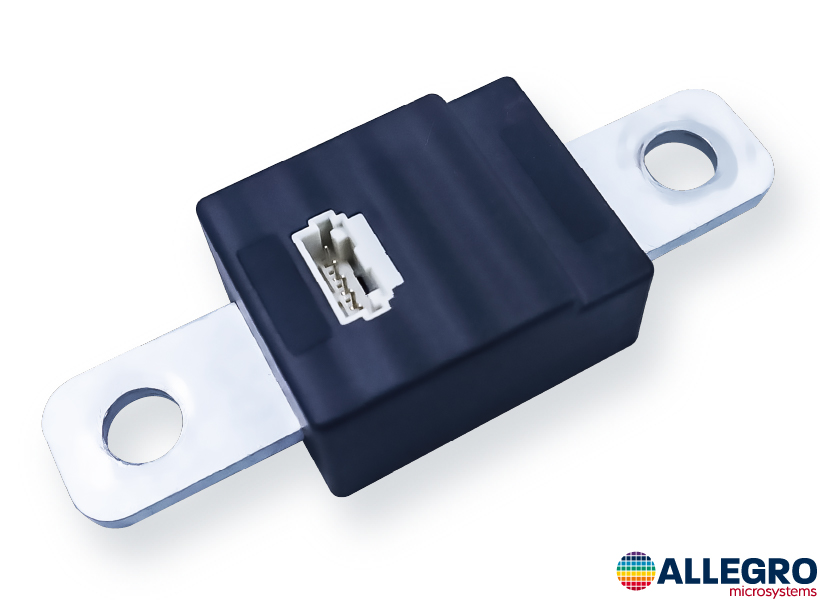

Product features
Technical Data
| Parameters | Provisional Specification |
|---|---|
| Peak Input Current Range | ±800A |
| Continuous Input Current | ±500A |
| Max Current（Bmax） | ±1,600A <1sec, ±7,000A <1msec |
| RMS voltage for AC insulation | 3kVac |
| Response time (Delay time to 90 %) | ≦4μs(di/dt : 100A/μs) (Including external filter) |
| Frequency bandwidth | 67kHz/-3dB (Including external filter) |
| CMTI（common-mode transient immunity） | ≧20kV/μs |
| Output voltage | +2.5V±2V(offset error ±3mV) |
| Hysteresis error | ≦±3mV |
| Parameters | Provisional Specification |
|---|---|
| Resolution | 1LSB=1mA |
| Supply voltage | +5V±0.25V |
| Current consumption | 10mA |
| Ambient operating temperature | -40℃～+125℃ |
| External magnetic field protection | The sensor is surrounded a high-permeable metal plate |
| Connector | Molex connector 5P(Gold plate) 560020-0530 |
| CPU&ADC | |
| CPU name | PIC18F27Q83-E/5N MCU |
| ADC name | INA239-Q1(TI) 16bit |
| Data calculation speed | 1msec |
| Data rate | 500kbps |
| Response speed | 10ms |
| CAN Output Frame | Normal Mode |
| CAN ID | 3C0h, DLC=8 |
* The information contained herein are provisional specifications and are subject to change without notice.
Reference dimensions

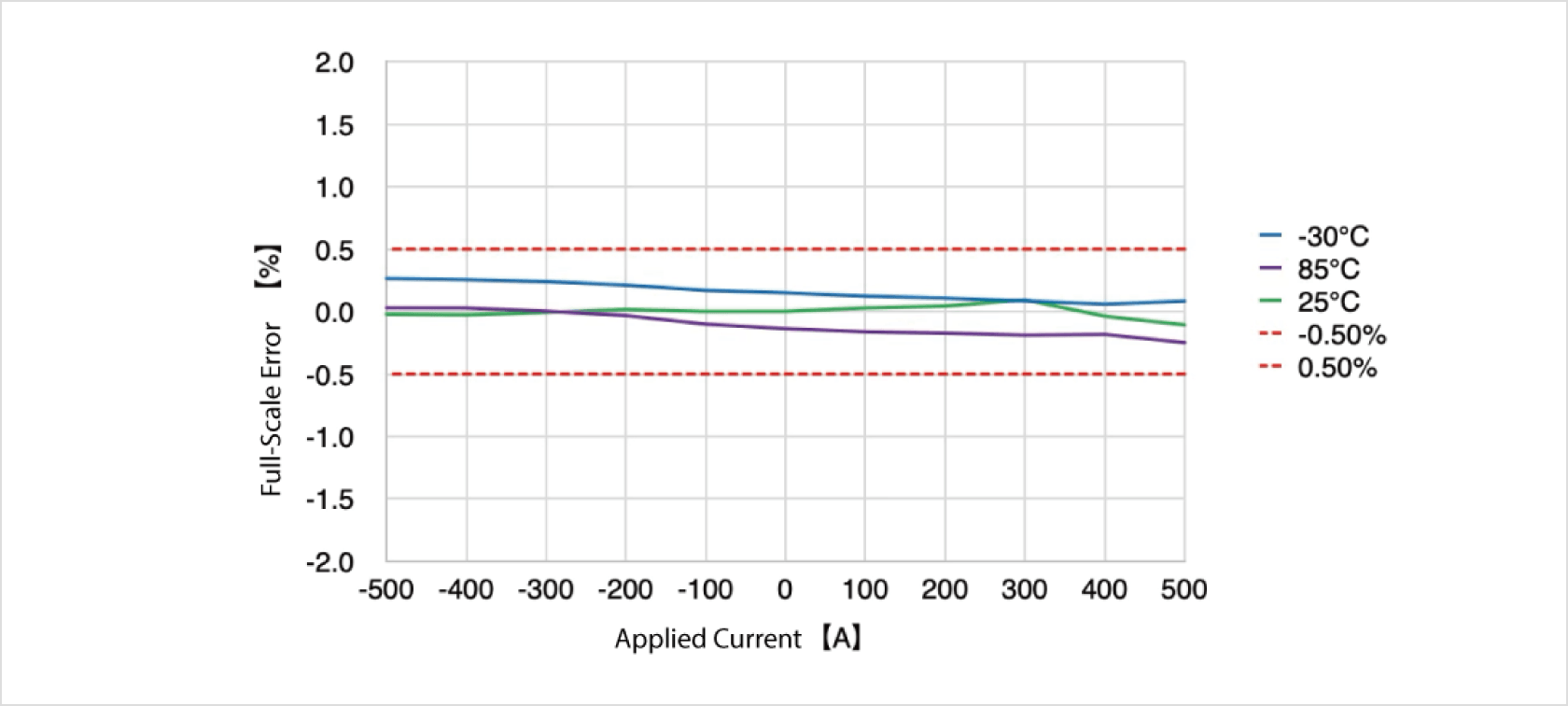

Measurement performance
(including ambient temperature)
