Connector integrated Shunt busbar
Product features
Product
under
development
RoHS and AEC-Q200
Compliance
Applications
BMS (12V/48V/High voltage), Battery pack, Inverter etc.
| Item | value | unit |
|---|---|---|
| Resistance | 50, 100 | μΩ |
| Rated power @105℃ | 16, 32 | W |

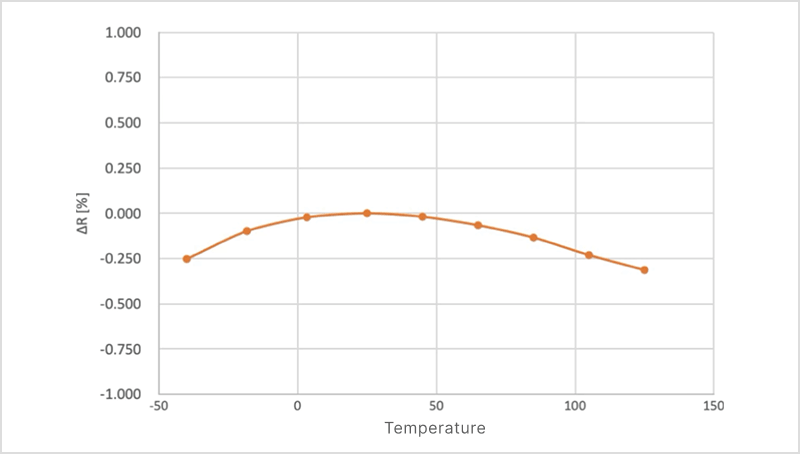

| Temperature coefficient of resistance (T.C.R) | ≦30 | p.p.m/℃ |
| Operating temperature range | －40 ～ +125 | ℃ |
| Connector | MOLEX power connector | |
* The information on this page is object to change without notice.
